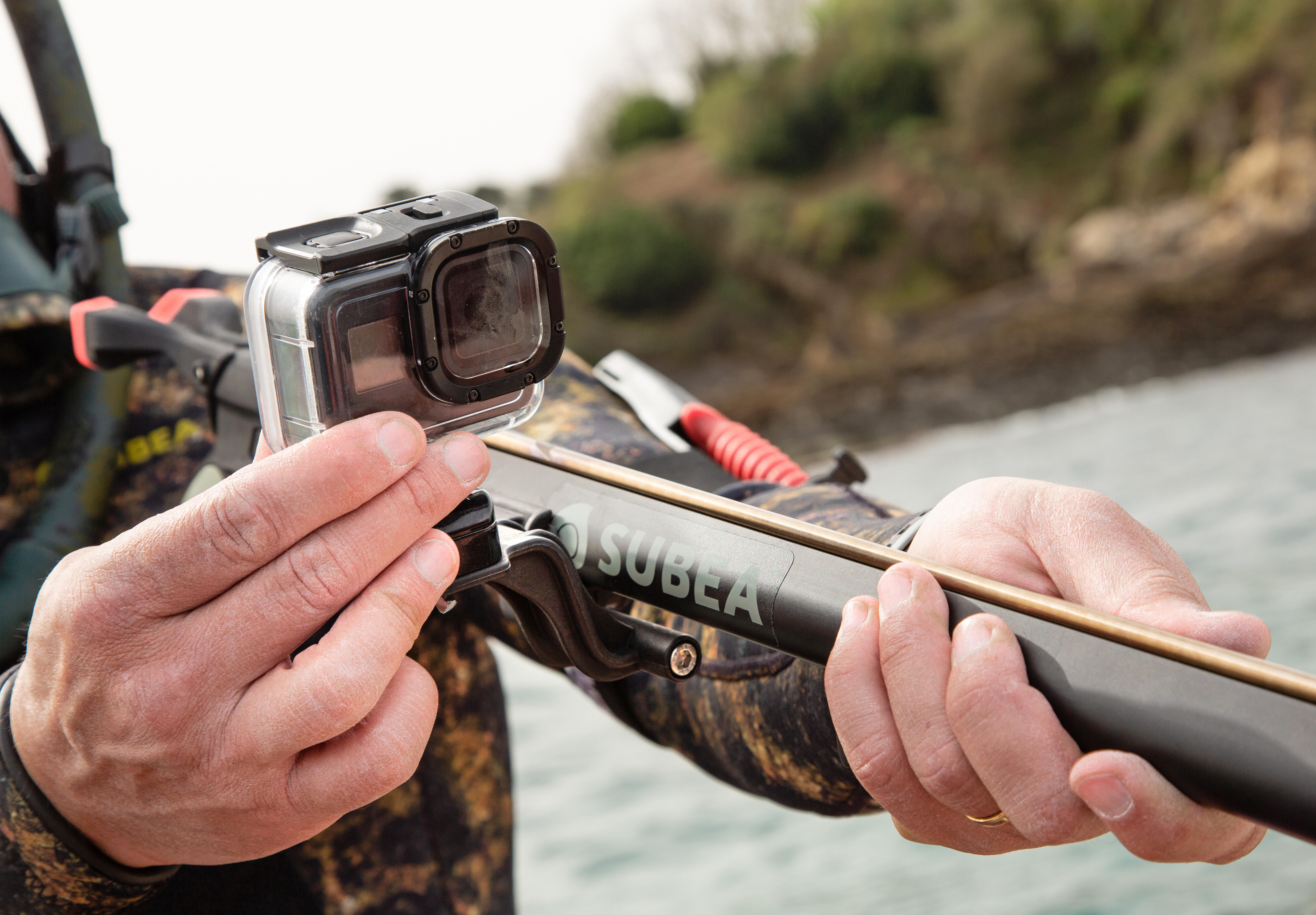

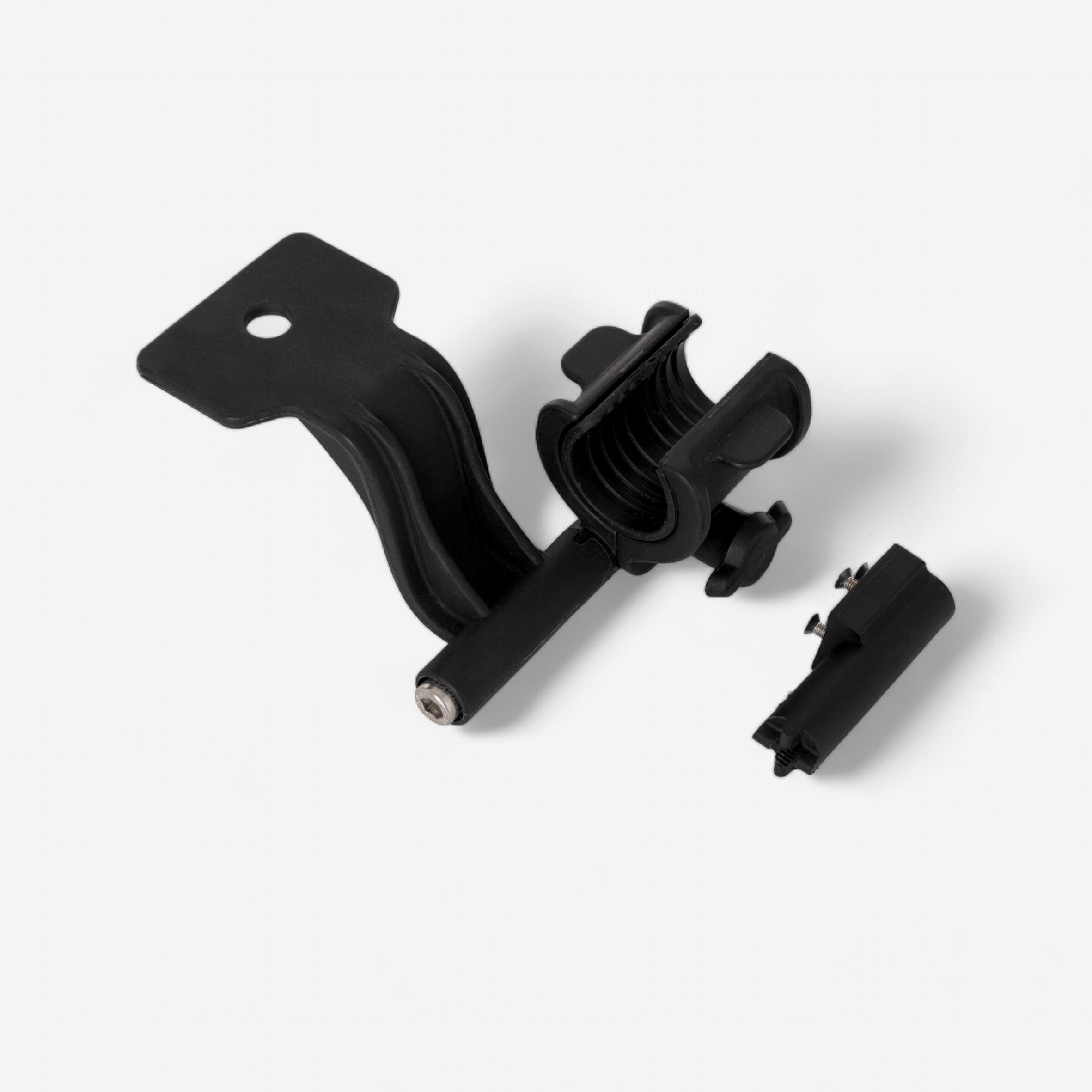

Included in the camera mount kit
1 angled plate with a 9 mm hold for attaching the camera
1 right-hand half casing
1 left-hand half casing
1 hand-tightened nut
1 anti-slip elastomer seal
1 stainless-steel spring / 1 stainless-steel screw shaft
1 connector specific to the SUBEA reel (ref. 8526576)
3 small stainless-steel screws for attachment to the reel
Dimensions and weight of the product
Overall dimensions = 11.5x9x5 cm
Universal configuration weight = 80 g
"Subea reel" configuration weight = 58 g
Holder plate area = 5x5 cm
Sideways offset of the angled part in relation to the tube axis = 4.5 cm
Compatibility
With its clip system, this kit can be attached to any speargun that has a round tube cross-section with an external diameter between 26 mm and 36 mm.
Also compatible with certain cuttlefish-shaped barrels

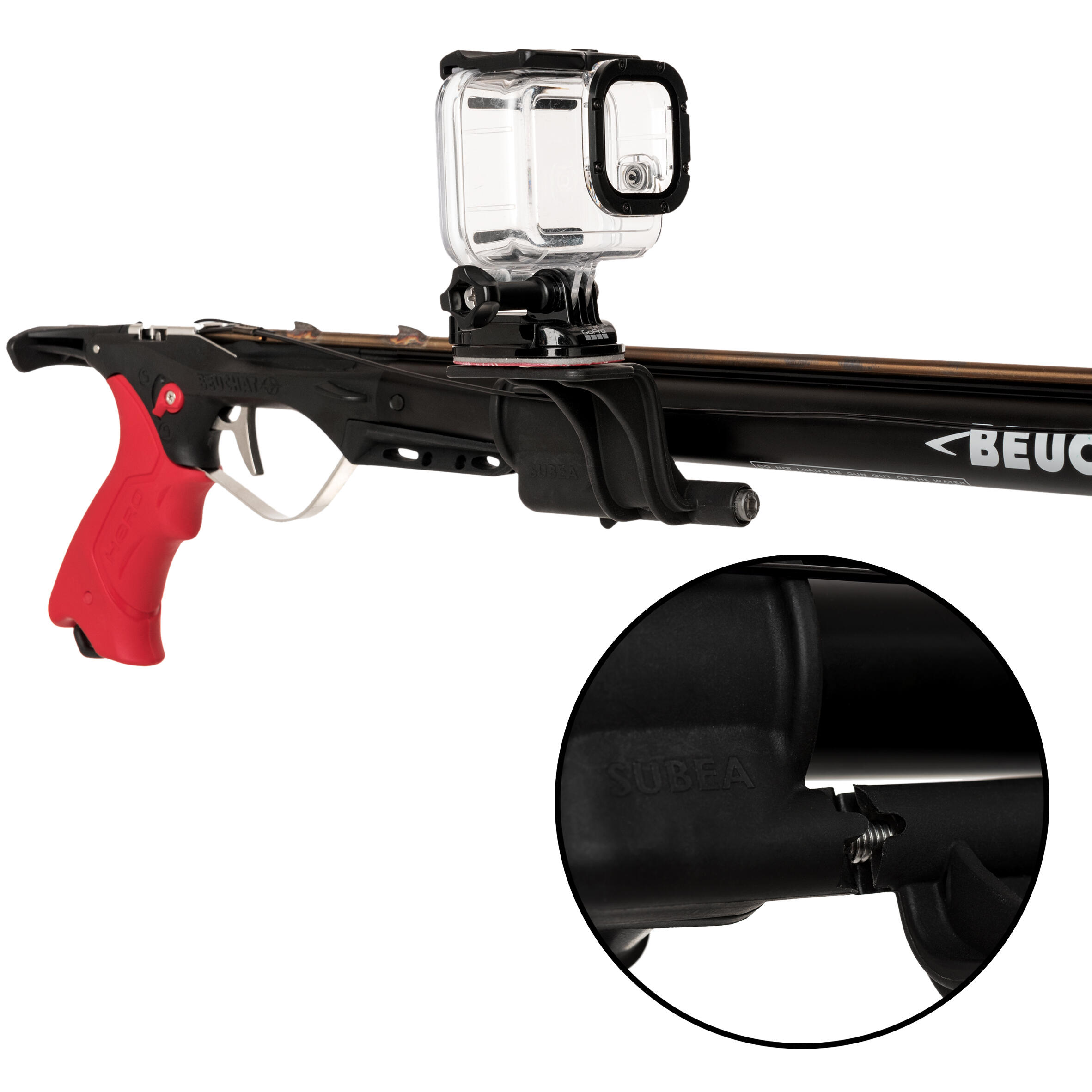

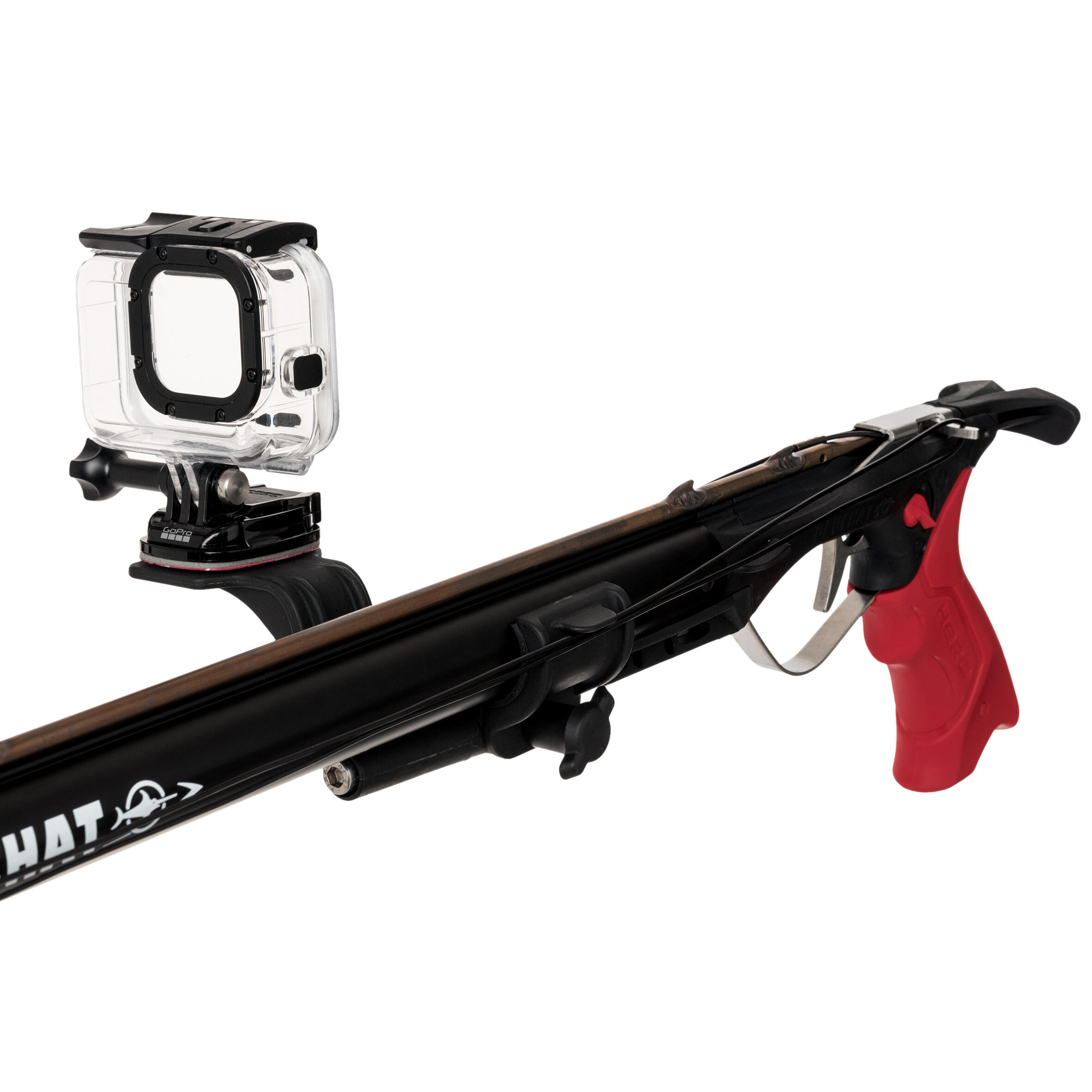

Fitting instructions - Universal clip configuration
Release the clip using the side bolt, which can be unscrewed by hand without the need for tools
Position the clip under the tube, as close as possible to the butt of the gun
Once the clip is positioned on either side of the tube, retighten with the securing bolt, ensuring that the anti-slip seal is correctly positioned between the speargun tube and the clip.

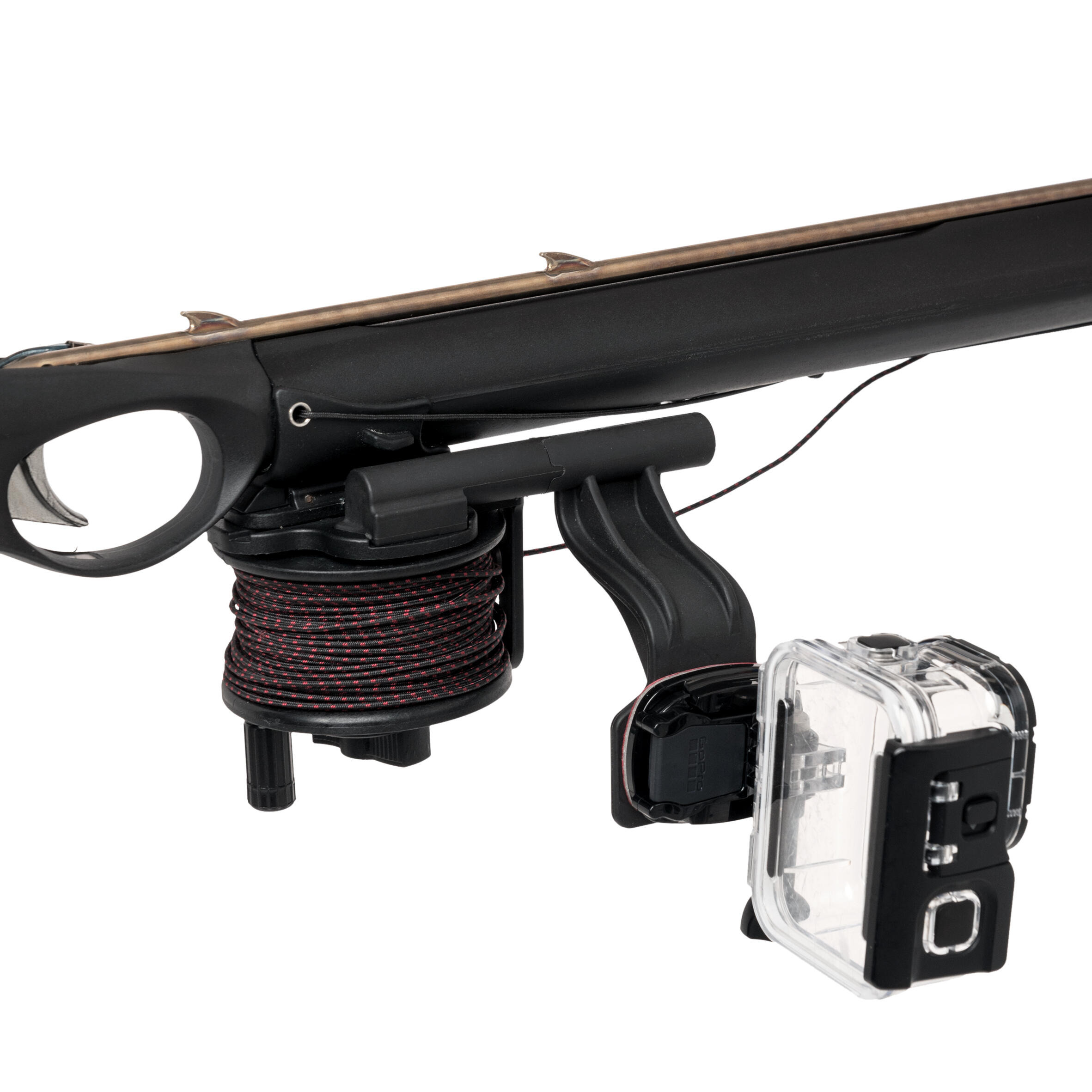

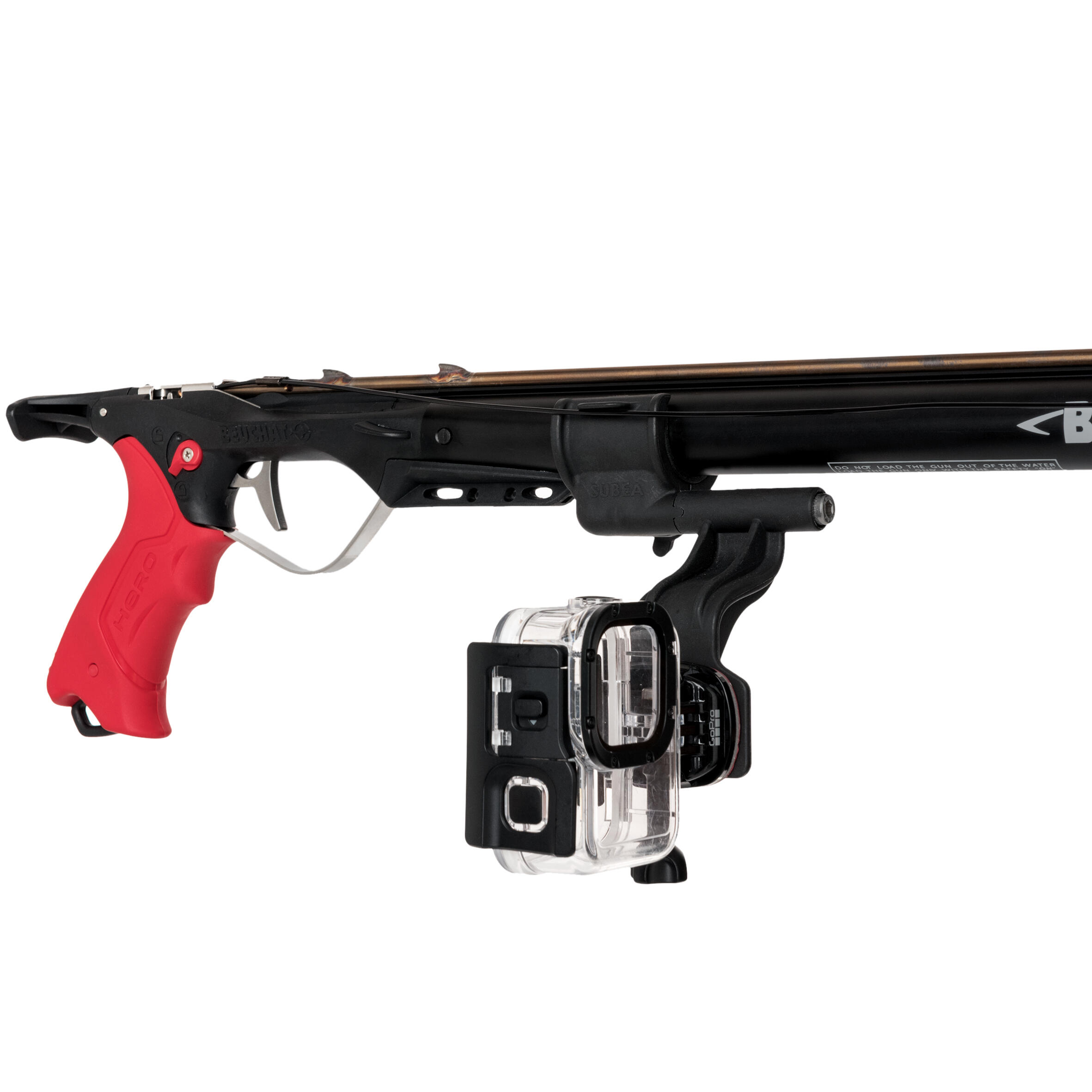

The camera holder plate can rotate 90° downwards to provide more clearance when reloading bands. Simply push and swing down.

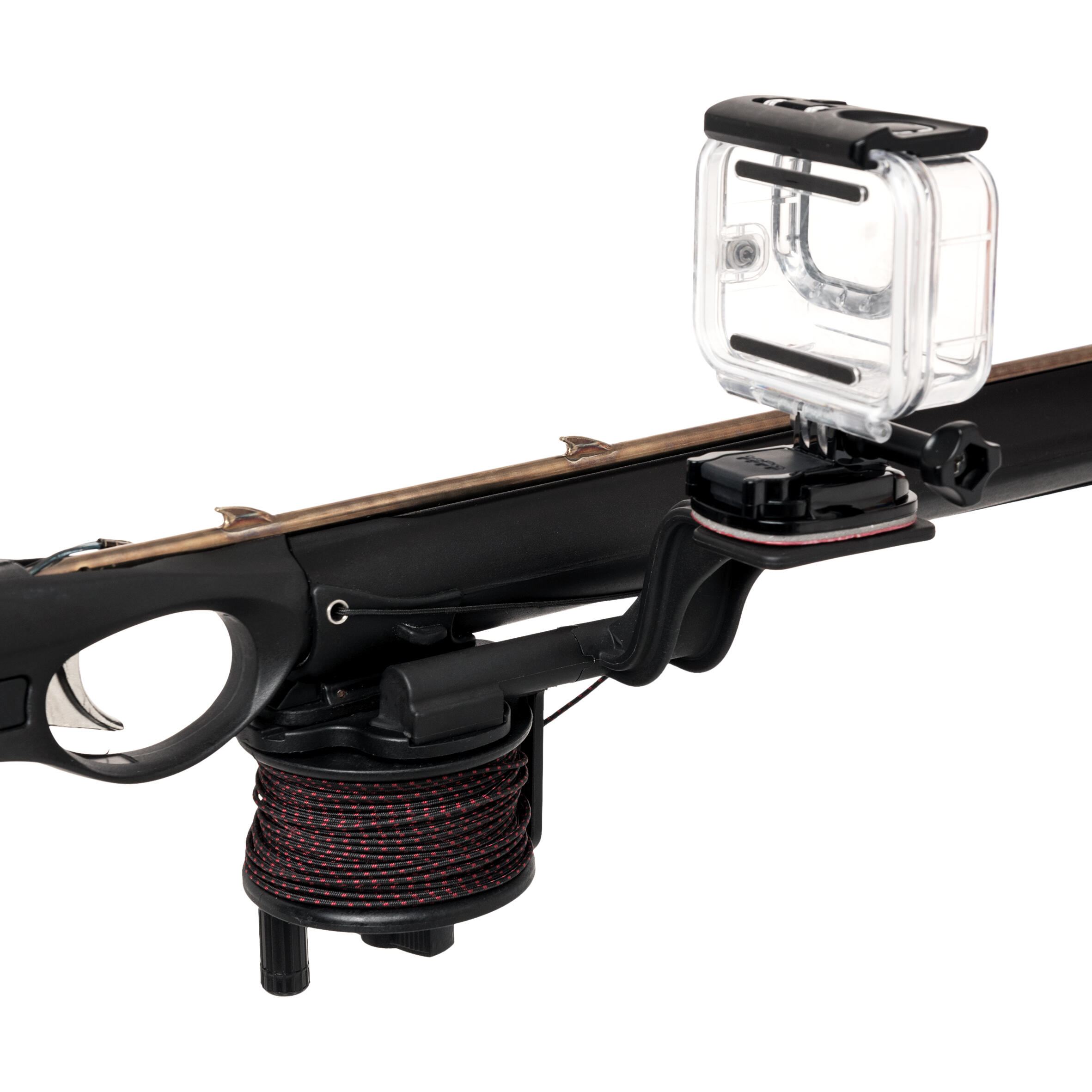

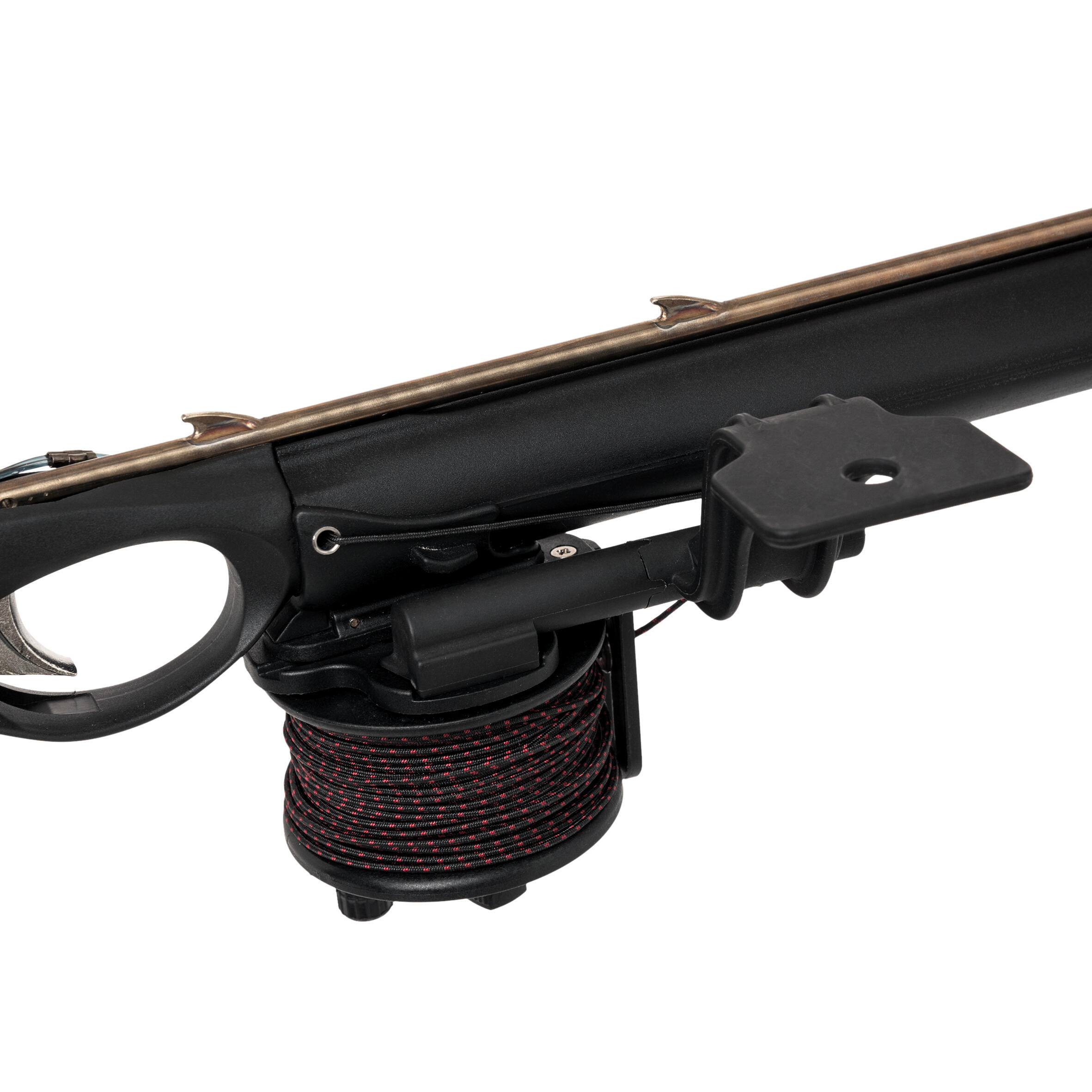

Assembly instructions - Subea SPF 500 Reel
Unscrew the screw at the base of the plate.
Retighten the screw with the spring facing the reel connector
Remove the reel from the speargun
Screw on the reel connector using the 3 stainless-steel screws provided
Fit the reel back onto the speargun
Not included
The kit does not contain:
A waterproof camera
The casing for a waterproof camera
Attachment screws for the underside of the camera
